The System

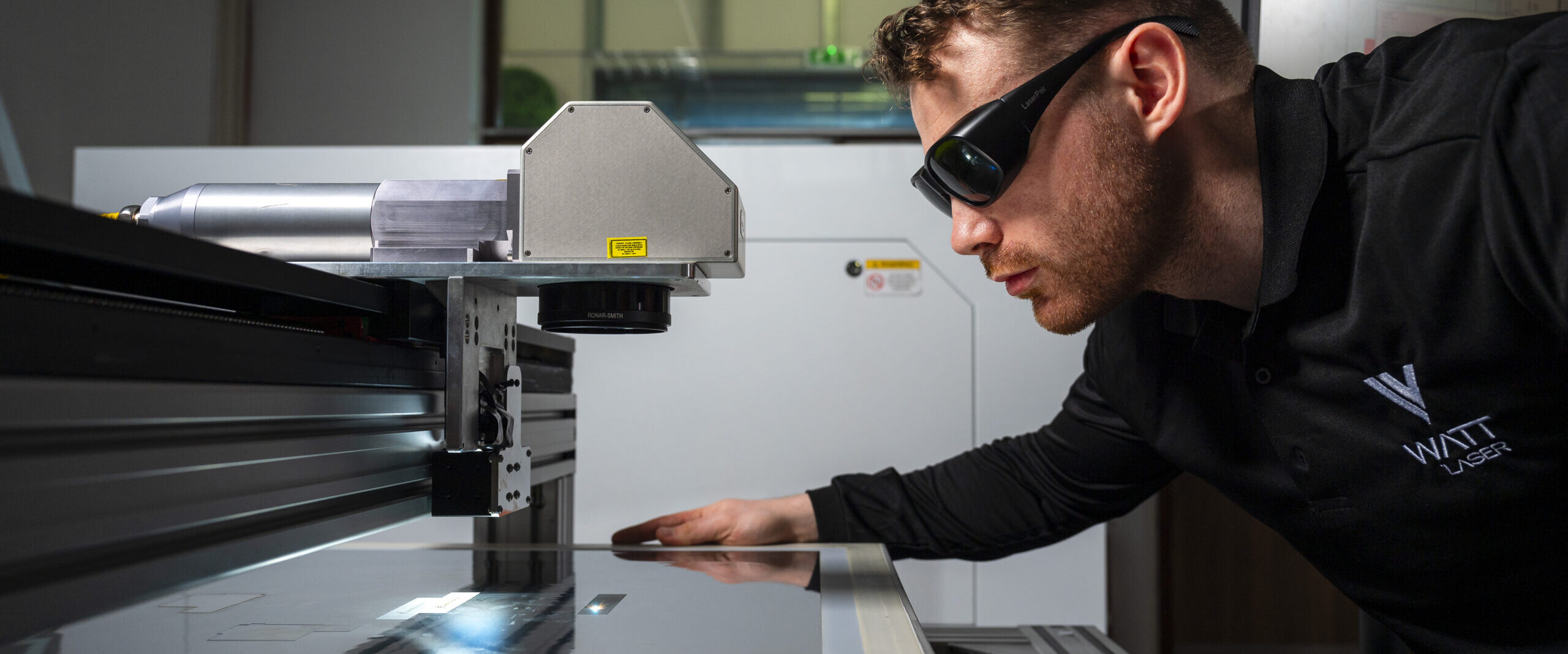

The SE12 PRO is an all-encompassing, multifunctional system that integrates laser marking, structuring, welding and advanced AOI into a single solution. Fully compatible with all industry-standard frame formats, this system allows users to achieve high levels of precision, accuracy and repeatability across all features.

The system enables high-precision, multi-level welded stencil production. Utilising advanced beam steering optics, this system delivers high-speed accuracy and performance – all without the need for any assist gas.

The SE12 PRO supports marking of high-resolution graphics, QR codes, text and images on both board and squeegee sides.

Watt Laser AOI checks for aperture presence, dimension, position and area against design data. Equipped with a high-definition camera, high-powered telecentric lens and Renishaw 1-micron scales, Watt Laser’s proprietary software provides unparalleled accuracy. Rework cut files are automatically generated for precise corrections and minimised waste, as well as a CofC upon successful inspection. The AOI function is integrable with any MRP/ERP system, enabling streamlined tracking and in-depth production analysis.



Marking and Structuring Specifications

Structuring Speed: 20 x 20mm, 2D Barcode = 30 seconds

Laser Power: 20W

Laser Wavelength: 1064nm

Laser Beam Quality: M²<2

Laser Source: Nanosecond Pulsed Fibre Laser

Working Area: 750 x 700mm (X*Y)

Overall Dimensions: 1100 x 1100 x 543mm

Weight: 100kg

Positional Accuracy: 10μm

Resolution: 1μm

Supply Voltage: Configurable to either 110/240V

Power Consumption: <1kW

Laser Supplier: IPG

Air Requirements: Compressed Air, 10bar (75 psi)

Construction: Aluminium

File Format: Gerber, DXF, JPEG, SVG, PNG, STL

Safety: Class 1



Welding Specifications

Welding Speed: 50mm/s

Vacuum Fixture: 395 x 395mm

Min. Material Thickness: 0.070mm

Max. Material Thickness: <1mm

Positional Accuracy: 20μm

Step Areas: 2 – 100mm
