The System

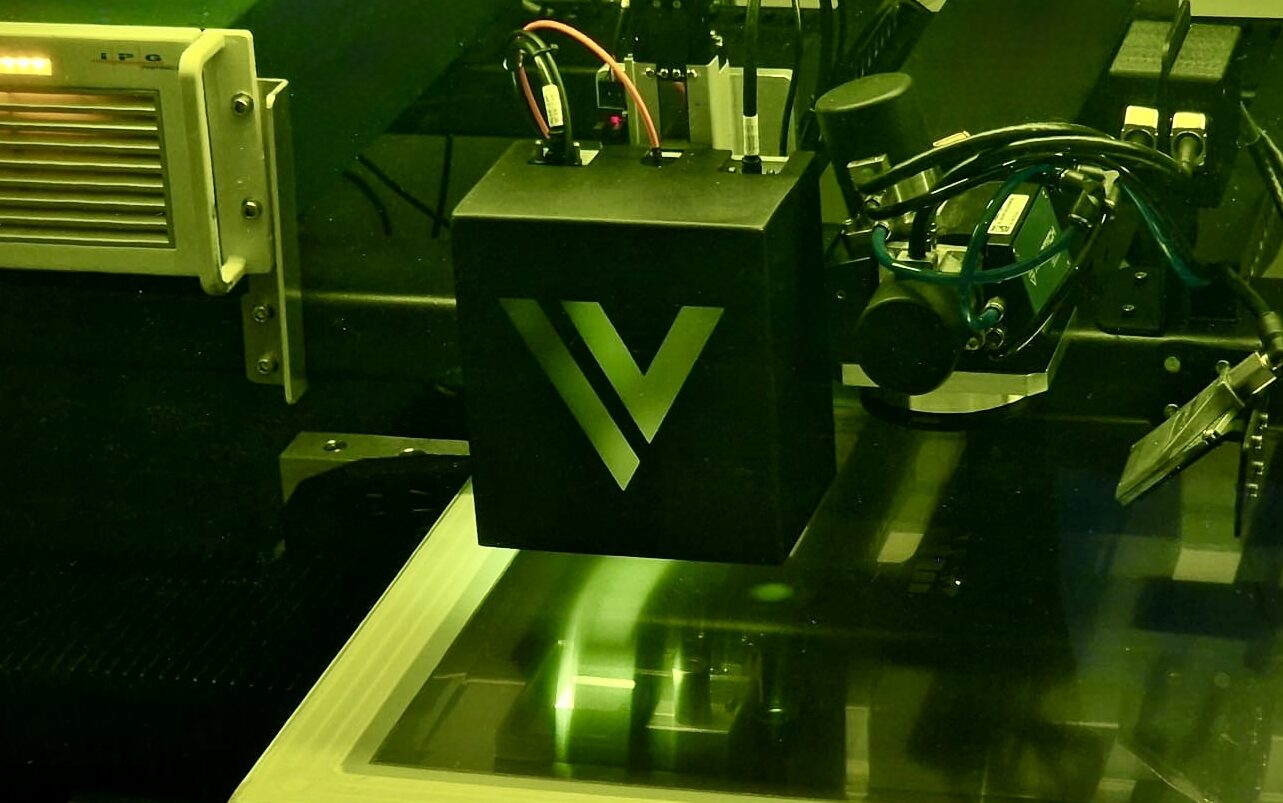

The SC12 is a modern, high-precision solution for replacing first-generation laser cutting machines. Offering laser power options ranging from 100W to 500W, the SC12 supports various material thicknesses.

The inclusion of IPG laser technology allows high-precision cutting, while Renishaw scales offer 0.1-micron axial precision. The system includes an automatic adjustable chase and high-force linear motors for optimal operation.

The SC12 operates on Watt Laser’s in-house developed software, designed with an intuitive user interface and high user experience. The system can be integrated into any MRP/ERP system and includes automation features for process efficiency and QR code-based data retrieval.

Specifications

Power: 100W – 500W
Laser Wavelength: 1064nm
Laser Beam Quality: M2<1.1
Working Area: 650 x 650mm
Clamping Size: 800mm x 1000mm
Cutting Thickness: <2mm
Cutting Speed (Apertures/hr): Up to 20,000
Overall Dimensions: 1600 x 1400 x 1500mm
Weight: 2200kg
Positional Accuracy: ±2μ
Repeated Positioning Accuracy: ±2μ
Supply Voltage: 220v
Power Consumption: <2kW
Laser Supplier: IPG
Auxiliary Cutting Gas: Oxygen, Compressed Air, Nitrogen
Construction: Granite
File Format: Gerber, LMD, DXF
Safety: Class 1
